电动拧紧工具 |
|
电动拧紧工具-直流传感器控制 -弯头浮动轴工具 |
|
 |
|
弯头浮动轴系列 |
|
扭矩范围：5.1-255Nm |
|
螺栓尺寸：M7-M18 |
|
精密无刷电机 |
|
分度控制 |
|
传感器精度 |
|
智能记忆 |
|
 |
|
参数信息 |
|
弯头浮动轴 |
扭矩范围 |
速度 |
重量 |
输出头尺寸 |
长度 |
边到中心 |
|
型号 |
ft.lbs. |
Nm |
RPM |
lbs. |
kg |
in. |
mm |
in. |
mm |
|
18EA16S131 |
3.7-11.8 |
5.1-16 |
1225 |
4.4 |
2.00 |
3/8" |
16.0 |
406 |
0.55 |
14 |
|
18EA23S131 |
5.3-16.9 |
7.2-23 |
860 |
4.4 |
2.00 |
3/8" |
16.0 |
406 |
0.55 |
14 |
|
18EA30S131 |
4.4-22.1 |
6.0-30 |
655 |
4.4 |
2.00 |
3/8" |
16.0 |
406 |
0.55 |
14 |
|
48EA37S231 |
5.9-27.2 |
8.0-37 |
1225 |
5.4 |
2.43 |
3/8" |
18.7 |
474 |
0.67 |
17 |
|
48EA52S231 |
8.1-38.3 |
11-52 |
860 |
5.4 |
2.43 |
3/8" |
18.7 |
474 |
0.67 |
17 |
|
48EA53S341 |
8.1-39.1 |
11-53 |
850 |
6.0 |
2.74 |
1/2" |
20.0 |
509 |
0.87 |
22 |
|
48EA75S341 |
11.0-55.3 |
15-75 |
600 |
6.0 |
2.74 |
1/2" |
20.0 |
509 |
0.87 |
22 |
|
48EA95S341 |
14.7-70.0 |
20-95 |
460 |
7.4 |
3.38 |
1/2" |
20.5 |
521 |
0.87 |
22 |
|
48EA110S341 |
16.9-81.1 |
23-110 |
400 |
7.4 |
3.38 |
1/2" |
20.5 |
521 |
0.87 |
22 |
|
48EA135S461 |
20.6-99.5 |
28-135 |
270 |
8.9 |
4.03 |
3/4" |
20.6 |
522 |
1.06 |
27 |
|
48EA230S461 |
34.6-169.6 |
47-230 |
150 |
10.6 |
4.79 |
3/4" |
22.2 |
563 |
1.06 |
27 |
|
67EA150S461 |
22.1-110.6 |
30-150 |
210 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
26 |
|
67EA185S461 |
27.3-136.3 |
37-185 |
170 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
26 |
|
67EA210S461 |
31.0-154.8 |
42-210 |
155 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
26 |
|
67EA235S461 |
33.9-169.6 |
46-230 |
135 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
26 |
|
67EA255S461 |
40.6-188.1 |
55-255 |
115 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
26 |
|
|
参数信息 |
|
弯头浮动拧紧轴 |
扭矩范围 |
速度 |
重量 |
输出驱动尺寸 |
长度 |
边到中心 |
|
型号 |
ft.lbs. |
Nm |
RPM |
lbs. |
kg |
in. |
mm |
in. |
mm |
|
18EAE16S131 |
3.7-12.5 |
5.1-17 |
1225 |
4.4 |
2.00 |
3/8" |
15.0 |
405 |
0.55 |
14 |
|
18EAE23S131 |
5.3-17.7 |
7.2-24 |
850 |
4.5 |
2.00 |
3/8" |
15.0 |
405 |
0.55 |
14 |
|
18EAE30S131 |
4.4-22.8 |
6.0-31 |
655 |
4.4 |
2.00 |
3/8" |
15.0 |
405 |
0.55 |
14 |
|
48EAE37S231 |
5.9-28.0 |
8.0-38 |
1225 |
5.4 |
2.43 |
3/8" |
18.7 |
474 |
0.57 |
17 |
|
48EAE52S231 |
8.1-39.8 |
11-54 |
850 |
5.4 |
2.43 |
3/8" |
18.7 |
474 |
0.57 |
17 |
|
48EAE53S341 |
8.1-39.8 |
11-54 |
850 |
5.4 |
2.43 |
1/2" |
18.7 |
474 |
0.57 |
17 |
|
48EAE74S341 |
11.0-56.8 |
15-77 |
500 |
5.0 |
2.74 |
1/2" |
20.0 |
509 |
0.87 |
22 |
|
48EAE95S341 |
14.7-72.2 |
20-98 |
460 |
7.4 |
3.38 |
1/2" |
20.5 |
521 |
0.87 |
22 |
|
48EAE110S341 |
16.9-81.1 |
23-110 |
400 |
7.4 |
3.38 |
1/2" |
20.5 |
521 |
0.87 |
22 |
|
48EA135ES461 |
20.6-101.7 |
28-138 |
270 |
8.9 |
4.03 |
3/4" |
20.5 |
522 |
1.05 |
27 |
|
48EA230ES461 |
34.5-172.5 |
47-234 |
150 |
10.5 |
4.79 |
3/4" |
22.2 |
563 |
1.05 |
27 |
|
67EA150S461¹ |
22.1-110.6 |
30-150 |
210 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
25 |
|
67EA185S461¹ |
27.3-135.3 |
37-185 |
170 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
25 |
|
67EA210S461¹ |
31.0-154.8 |
42-210 |
155 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
25 |
|
67EA235S461¹ |
33.9-169.5 |
46-230 |
135 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
25 |
|
67EA255S461¹ |
40.6-188.1 |
55-255 |
115 |
12.9 |
5.90 |
3/4" |
25.8 |
655 |
1.03 |
25 |
|
|
额外设备：标准工具电缆542778-xx，PAX旋转电缆544055-xx，内联旋转电缆544056-xx，延长电缆542779-xx |
|
一般：所有工具必须与许可的工具电缆和控制器一起使用。 |
|
E：表示Ail-LB航空插头，可与GC控制器连接。 |
|
标准装备：Matrix插口，安装版 |
|

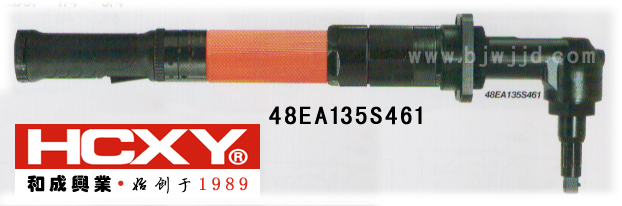

18EA,48EA&67EA 浮动轴弯头 |
 |
|
|
