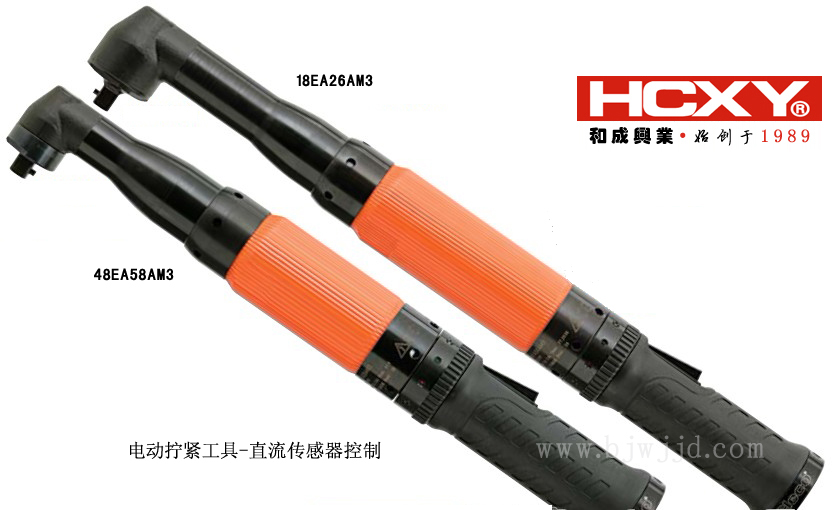

电动拧紧工具-直流传感器控制 -弯头系列 |
 |
|
弯头系列 |
|
扭矩范围 2-230Nm 适应螺栓尺寸
M5-M16 |
|
无刷紧密电机 |
|
分度技术 |
|
精确的传感器 |
|
智能记忆 |
|
 |
|
参数信息 |
| 弯头 |
扭矩范围 |
速度 |
重量 |
输出头 尺寸 |
长度 |
弯头 |
| 边到中心 |
高度 |
|

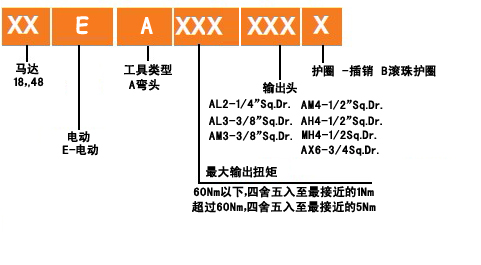

型号 |
ft.lbs. |
Nm |
RPM |
lbs. |
kg |
in. |
mm |
in. |
mm |
in. |
mm |
|
18EA08AL2 |
1.5-5.9 |
2-8 |
3000 |
2.9 |
1.3 |
1/4" |
13.6 |
345 |
0.51 |
13 |
1.4 |
36 |
|
18EA15AM3 |
3.0-11.1 |
4-15 |
1300 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
18EA22AM3 |
3.7-16.2 |
5-22 |
920 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
18EA28AM3 |
4.4-20.7 |
6-28 |
700 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
48EA15AL3 |
2.2-11.1 |
3-15 |
2855 |
3.8 |
1.7 |
3/8" |
15.7 |
398 |
0.59 |
15 |
1.6 |
41 |
|
48EA28AL3 |
4.4-20.7 |
6-28 |
1300 |
4.1 |
1.9 |
3/8" |
16.2 |
410 |
0.59 |
15 |
1.6 |
41 |
|
48EA41AM3 |
6.6-30.2 |
9-41 |
1090 |
4.3 |
2.0 |
3/8" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EA58AM3 |
8.9-42.8 |
12-58 |
770 |
4.3 |
2.0 |
3/8" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EA58AM4 |
8.9-42.8 |
12-58 |
770 |
4.3 |
2.0 |
1/2" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EA90AH4 |
13.3-64.2 |
18-87 |
515 |
6.6 |
3.0 |
1/2" |
18.5 |
440 |
0.81 |
21 |
2.3 |
58 |
|
48EA105AH4 |
15.5-76.7 |
21-104 |
340 |
6.6 |
3.0 |
1/2" |
18.5 |
470 |
0.81 |
21 |
2.3 |
58 |
|
48EA135MH4 |
19.9-98.1 |
27-133 |
265 |
7.3 |
3.3 |
1/2" |
19.1 |
485 |
0.94 |
24 |
2.4 |
61 |
|
48EA175AX6 |
26.6-129.8 |
36-176 |
190 |
10.2 |
4.6 |
3/4" |
21.6 |
549 |
1.06 |
27 |
2.7 |
69 |
|
48EA230AX6 |
33.9-169.6 |
46-230 |
145 |
10.2 |
4.6 |
3/4" |
21.6 |
549 |
1.06 |
27 |
2.7 |
69 |
|
|
参数信息 |
| 弯头系列 |
扭矩范围 |
速度 |
重量 |
输出头 尺寸 |
长度 |
弯头 |
| 边到中心 |
高度 |
|
型号 |
ft.lbs. |
Nm |
RPM |
lbs. |
kg |
in. |
mm |
in. |
mm |
in. |
mm |
|
18EAE08AL2 |
1.5-5.9 |
2-8 |
3000 |
2.9 |
1.3 |
1/4" |
13.6 |
345 |
0.51 |
13 |
1.4 |
36 |
|
18EAE15AM3 |
3.0-11.1 |
4-15 |
1300 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
18EAE22AM3 |
3.7-16.2 |
5-22 |
920 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
18EAE28AM3 |
4.4-20.7 |
6-28 |
700 |
3.3 |
1.5 |
3/8" |
14.8 |
376 |
0.59 |
15 |
1.6 |
41 |
|
48EAE15AL3 |
2.2-11.1 |
3-15 |
2855 |
3.8 |
1.7 |
3/8" |
15.7 |
398 |
0.59 |
15 |
1.6 |
41 |
|
48EAE28AL3 |
4.4-20.7 |
6-28 |
1300 |
4.1 |
1.9 |
3/8" |
16.2 |
410 |
0.59 |
15 |
1.6 |
41 |
|
48EAE41AM3 |
6.6-30.2 |
9-41 |
1090 |
4.3 |
2.0 |
3/8" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EAE58AM3 |
8.9-42.8 |
12-58 |
770 |
4.3 |
2.0 |
3/8" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EAE58AM4 |
8.9-42.8 |
12-58 |
770 |
4.3 |
2.0 |
1/2" |
17.3 |
440 |
0.75 |
19 |
1.9 |
48 |
|
48EAE90AH4 |
13.3-64.2 |
18-87 |
515 |
6.6 |
3.0 |
1/2" |
18.5 |
440 |
0.81 |
21 |
2.3 |
58 |
|
48EAE105AH4 |
15.5-76.7 |
21-104 |
340 |
6.6 |
3.0 |
1/2" |
18.5 |
470 |
0.81 |
21 |
2.3 |
58 |
|
48EAE135MH4 |
19.9-98.1 |
27-133 |
265 |
7.3 |
3.3 |
1/2" |
19.1 |
485 |
0.94 |
24 |
2.4 |
61 |
|
48EAE175AX6 |
26.6-129.8 |
36-176 |
190 |
10.2 |
4.6 |
3/4" |
21.6 |
549 |
1.06 |
27 |
2.7 |
69 |
|
48EAE230AX6 |
33.9-169.6 |
46-230 |
145 |
10.2 |
4.6 |
3/4" |
21.6 |
549 |
1.06 |
27 |
2.7 |
69 |
|
|
重量不包括工具电缆和反应杆 |
|
额外设备：标准工具电缆542778-xx，PAX旋转电缆544044-xx，内联旋转电缆544056-xx，延长电缆542779-xx |
|
注：将弯头的耐久性限制在额定扭矩内 |
|
一般：所有工具必须与许可的工具电缆和控制器一起使用。 |
|
标准装备：Matrix插口、滚珠护圈可选。 |
|
备注：E表示AIR-LB航空插头，可与GC控制器连接，连接电缆可选用全能控制器附件中电缆。 |
