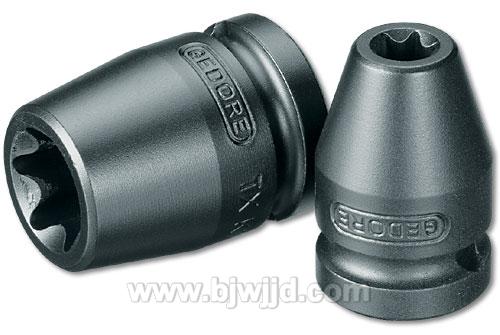

| 冲击套筒1/2"用于外TORX®螺丝钉TXK19 |
 |
| 编码 |
编号 |
螺纹尺寸 |
截面宽度(mm) |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6223110 |
TX K 19 E10 |
M8 |
9.42 |
38 |
14.5 |
25 |
6.4 |
70 g |
1 |
| 6223380 |
TX K 19 E12 |
M10 |
11.17 |
38 |
16.5 |
25 |
8.0 |
72 g |
1 |
| 6223460 |
TX K 19 E14 |
M12 |
12.90 |
38 |
18.5 |
25 |
8.8 |
75 g |
1 |
| 6223540 |
TX K 19 E16 |
M12 |
14.76 |
38 |
20.5 |
25 |
9.6 |
75 g |
1 |
| 6223620 |
TX K 19 E18 |
M14 |
16.70 |
38 |
22.5 |
25 |
11.1 |
92 g |
1 |
| 6223700 |
TX K 19 E20 |
M16 |
18.45 |
40 |
25.0 |
30 |
12.7 |
105 g |
1 |
| 6223890 |
TX K 19 E24 |
M18-M20 |
22.16 |
40 |
28.5 |
30 |
15.9 |
110 g |
1 |
|

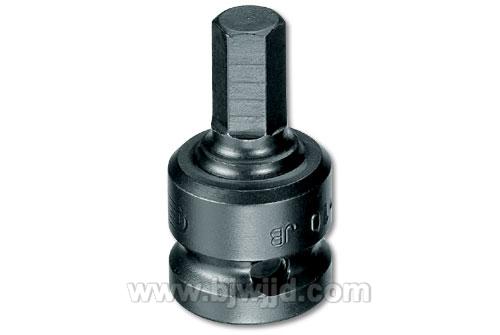

| 旋具头套筒1/2"用于六角套头螺丝INK19 |
 |
| 编码 |
编号
截面宽度(mm) |
L1 |
L2 |
d |
重量 |
包装单元 |
| 6223970 |
IN K 19 5 |
44 |
7.5 |
25 |
63 g |
10 |
| 6224000 |
IN K 19 6 |
44 |
9.0 |
25 |
65 g |
10 |
| 6224190 |
IN K 19 8 |
44 |
11.0 |
25 |
75 g |
10 |
| 6224270 |
IN K 19 10 |
44 |
13.0 |
25 |
90 g |
10 |
| 6224350 |
IN K 19 12 |
50 |
15.0 |
30 |
110 g |
10 |
| 6225320 |
IN K 19 14 |
50 |
17.0 |
30 |
145 g |
10 |
| 6225670 |
IN K 19 17 |
50 |
19.0 |
30 |
195 g |
10 |
|
|
|
| |
|
|
