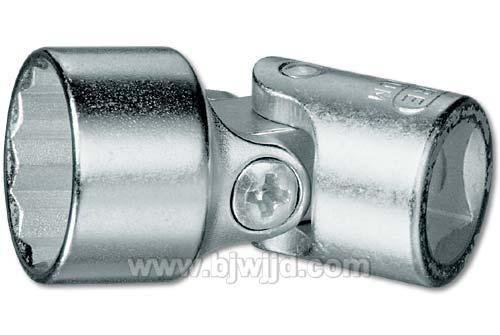

| 套筒3/8"UD profileDG30 |
 |
| 编码 |
编号
截面宽度(mm) |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6240630 |
DG 30 10 |
41.5 |
14.7 |
19.0 |
8.0 |
55 g |
1 |
| 6240710 |
DG 30 11 |
41.5 |
16.0 |
19.0 |
8.0 |
55 g |
1 |
| 6240980 |
DG 30 12 |
42.5 |
17.2 |
19.0 |
9.0 |
60 g |
1 |
| 6241520 |
DG 30 13 |
42.5 |
18.5 |
19.0 |
9.0 |
60 g |
1 |
| 6241600 |
DG 30 14 |
43.5 |
19.7 |
19.0 |
11.0 |
60 g |
1 |
| 6241790 |
DG 30 15 |
45.5 |
21.0 |
19.0 |
11.0 |
65 g |
1 |
| 6241870 |
DG 30 16 |
45.5 |
22.2 |
19.0 |
11.0 |
70 g |
1 |
| 6241950 |
DG 30 17 |
46.0 |
23.5 |
19.0 |
12.5 |
70 g |
1 |
| 6242410 |
DG 30 18 |
46.0 |
24.7 |
19.0 |
12.5 |
75 g |
1 |
| 6242680 |
DG 30 19 |
46.8 |
26.0 |
19.0 |
12.5 |
75 g |
1 |
|

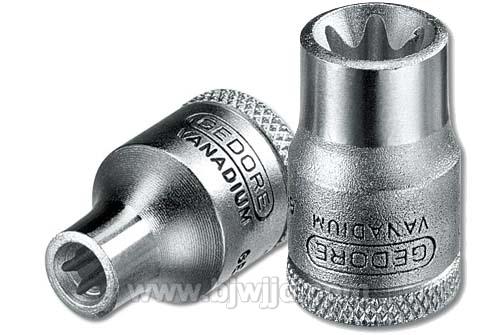

| 套筒3/8"用于外TORX®螺丝TX30 |
 |
| 编码 |
编号TORX®外六角 |
螺纹尺寸 |
截面宽度(mm) |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6250270 |
TX 30 E5 |
M4 |
4.75 |
28.0 |
7.2 |
17.5 |
5.0 |
25 g |
5 |
| 6250350 |
TX 30 E6 |
M5 |
5.74 |
28.0 |
8.5 |
17.5 |
5.0 |
25 g |
5 |
| 6250430 |
TX 30 E7 |
M6 |
6.22 |
28.0 |
9.5 |
17.5 |
5.5 |
25 g |
5 |
| 6250510 |
TX 30 E8 |
M6-M7 |
7.52 |
28.0 |
10.8 |
17.5 |
6.0 |
25 g |
5 |
| 6250780 |
TX 30 E10 |
M8 |
9.42 |
28.0 |
13.2 |
17.5 |
9.0 |
30 g |
5 |
| 6250860 |
TX 30 E11 |
- |
10.08 |
28.0 |
13.8 |
17.5 |
9.0 |
30 g |
5 |
| 6250940 |
TX 30 E12 |
M10 |
11.17 |
28.0 |
15.2 |
17.5 |
9.0 |
30 g |
5 |
| 6251080 |
TX 30 E14 |
M12 |
12.90 |
28.0 |
16.8 |
18.3 |
9.0 |
35 g |
5 |
|
|
|
| |
|
|
