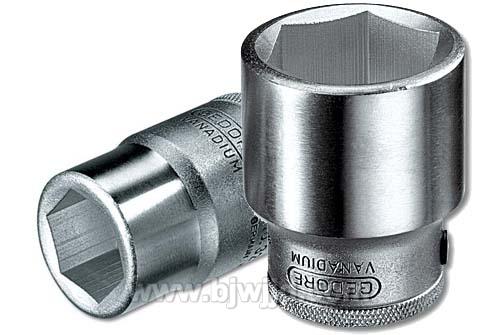

| 套筒3/4"六边形32 |
 |
| 编码 |
编号
截面宽度(mm) |
非标准化 |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6269880 |
32 18 |
非标准化 |
51.5 |
28.3 |
36.0 |
19.0 |
230 g |
1 |
| 6270110 |
32 19 |
非标准化 |
51.5 |
29.6 |
36.0 |
19.0 |
120 g |
1 |
| 6269960 |
32 21 |
非标准化 |
51.5 |
32.0 |
36.0 |
19.0 |
240 g |
1 |
| 6270380 |
32 22 |
|
51.5 |
33.3 |
36.0 |
19.0 |
160 g |
1 |
| 6270460 |
32 24 |
|
51.5 |
35.8 |
38.0 |
19.5 |
180 g |
1 |
| 6270540 |
32 27 |
|
54.5 |
39.6 |
36.0 |
24.0 |
250 g |
1 |
| 6270620 |
32 29 |
非标准化 |
54.5 |
42.0 |
36.0 |
23.5 |
280 g |
1 |
| 6270700 |
32 30 |
|
57.5 |
43.3 |
38.0 |
26.0 |
350 g |
1 |
| 6270890 |
32 32 |
|
57.5 |
45.8 |
38.0 |
27.0 |
380 g |
1 |
| 6270030 |
32 33 |
非标准化 |
57.5 |
47.0 |
40.0 |
26.5 |
400 g |
1 |
| 6279410 |
32 34 |
|
57.5 |
48.3 |
40.0 |
26.5 |
410 g |
1 |
| 6270970 |
32 36 |
|
59.5 |
50.8 |
40.0 |
28.0 |
450 g |
1 |
| 6271000 |
32 38 |
非标准化 |
59.5 |
53.3 |
40.5 |
28.0 |
460 g |
1 |
| 6271190 |
32 41 |
|
62.5 |
57.1 |
44.0 |
30.5 |
500 g |
1 |
| 6271270 |
32 46 |
|
62.5 |
63.3 |
44.0 |
32.5 |
570 g |
1 |
| 6271350 |
32 50 |
|
68.5 |
68.3 |
48.0 |
34.5 |
650 g |
1 |
| 6271430 |
32 55 |
非标准化 |
68.5 |
74.6 |
53.0 |
33.0 |
750 g |
1 |
| 6271510 |
32 60 |
非标准化 |
68.5 |
80.8 |
53.0 |
33.0 |
850 g |
1 |
|
| 套筒3/4"UD profileD32 |
|
| 编码 |
编号
截面宽度(mm) |
非标准化 |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6289720 |
D 32 18 |
非标准化 |
51.5 |
28.3 |
36.0 |
19.0 |
215 g |
1 |
| 6272160 |
D 32 19 |
非标准化 |
51.5 |
29.6 |
36.0 |
19.0 |
120 g |
1 |
| 6289800 |
D 32 21 |
非标准化 |
51.5 |
32.0 |
36.0 |
19.0 |
225 g |
1 |
| 6272240 |
D 32 22 |
|
51.5 |
33.3 |
36.0 |
19.0 |
150 g |
1 |
| 6272320 |
D 32 24 |
|
51.5 |
35.8 |
38.0 |
19.5 |
180 g |
1 |
| 6272400 |
D 32 27 |
|
54.5 |
39.6 |
36.0 |
24.0 |
250 g |
1 |
| 6272590 |
D 32 29 |
非标准化 |
54.5 |
42.0 |
36.0 |
23.5 |
280 g |
1 |
| 6272670 |
D 32 30 |
|
57.5 |
43.3 |
38.0 |
26.0 |
350 g |
1 |
| 6272750 |
D 32 32 |
|
57.5 |
45.8 |
38.0 |
27.0 |
380 g |
1 |
| 6277040 |
D 32 33 |
非标准化 |
57.5 |
47.0 |
40.0 |
26.5 |
400 g |
1 |
| 6272830 |
D 32 36 |
|
59.5 |
50.8 |
40.0 |
28.0 |
450 g |
1 |
| 6272910 |
D 32 38 |
非标准化 |
59.5 |
53.3 |
40.5 |
28.0 |
460 g |
1 |
| 6273050 |
D 32 41 |
|
62.5 |
57.1 |
44.0 |
30.5 |
500 g |
1 |
| 6273130 |
D 32 46 |
|
62.5 |
63.3 |
44.0 |
32.5 |
570 g |
1 |
| 6273210 |
D 32 50 |
|
68.5 |
68.3 |
48.0 |
34.5 |
650 g |
1 |
| 6273480 |
D 32 55 |
非标准化 |
68.5 |
74.6 |
53.0 |
33.0 |
750 g |
1 |
| 6273560 |
D 32 60 |
非标准化 |
68.5 |
80.8 |
53.0 |
33.0 |
850 g |
1 |
| 编码 |
编号
截面宽度("AF) |
非标准化 |
L |
d1 |
d2 |
t |
重量 |
包装单元 |
| 6274020 |
D 32 7/8AF |
|
51.5 |
33.6 |
36.0 |
19.0 |
150 g |
1 |
| 6274100 |
D 32 15/16AF |
|
51.5 |
35.6 |
38.0 |
19.5 |
180 g |
1 |
| 6274290 |
D 32 1AF |
|
51.5 |
37.6 |
36.0 |
22.0 |
200 g |
1 |
| 6274370 |
D 32 1.1/16AF |
|
54.5 |
39.6 |
36.0 |
24.0 |
250 g |
1 |
| 6274450 |
D 32 1.1/8AF |
|
54.5 |
41.5 |
36.0 |
24.0 |
280 g |
1 |
| 6274530 |
D 32 1.1/4AF |
|
57.5 |
45.5 |
38.0 |
27.0 |
380 g |
1 |
| 6274610 |
D 32 1.5/16AF |
|
57.5 |
47.5 |
40.0 |
26.5 |
400 g |
1 |
| 6274880 |
D 32 1.3/8AF |
|
59.5 |
49.5 |
40.0 |
28.0 |
420 g |
1 |
| 6274960 |
D 32 1.7/16AF |
|
59.5 |
51.4 |
40.0 |
28.0 |
450 g |
1 |
| 6275180 |
D 32 1.1/2AF |
|
59.5 |
53.3 |
40.5 |
28.0 |
460 g |
1 |
| 6275260 |
D 32 1.5/8AF |
|
62.5 |
57.4 |
44.0 |
30.5 |
500 g |
1 |
| 6275340 |
D 32 1.11/16AF |
|
62.5 |
59.4 |
44.0 |
30.5 |
530 g |
1 |
| 6275420 |
D 32 1.3/4AF |
|
65.5 |
61.4 |
44.0 |
32.5 |
550 g |
1 |
| 6275500 |
D 32 1.13/16AF |
|
65.5 |
63.3 |
44.0 |
32.5 |
570 g |
1 |
| 6275690 |
D 32 1.7/8AF |
|
65.5 |
65.3 |
44.0 |
32.5 |
600 g |
1 |
| 6275770 |
D 32 2AF |
|
68.5 |
69.2 |
48.0 |
34.5 |
650 g |
1 |
|
|
|
| |
|
|
