| ROCAM

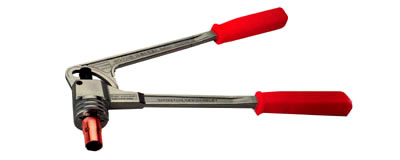

动力扭矩扩管器 |
 |
|
用于下列材料制成管子的扩孔、缩孔和校准
| 软铜/半硬铜 |
直径8-42mm,5/16-1.3/4"
管壁厚度1.6mm |
| 软铝 |
直径8-28mm,5/16-1.1/8"
管壁厚度1.6mm |
| 精密仪器用软钢 |
直径8-28mm,5/16-1.1/8"
管壁厚度1.6mm |
| 软不锈钢 |
直径8-22mm,5/16-7/8"管壁厚度1.6mm |
主要特点：
- 没有购买和储存配件的成本
- 省50%人工费
- 省50%钎焊材料和能耗
- 可将废旧管子转变为配件，节省资源
- 减少了接头数量，增强了安全性
- 获得扩管技术首创者和扩管器制造领先者的技术已达35年之久
金色钛氧化化合物涂层，有以下独有优点，高硬度，2300HV，防磨损，有保护功能与钢的磨擦系数小，省力，化学性质稳定，防腐蚀，通用的防腐损涂层
标准直径 |
货号 |
10-12-14-16-18-22mm |
1.2311 |
10-12-15-18-22mm |
1.2302 |
12-14-16-18-22mm |
1.2309 |
12-15-18-22mm |
1.2309 |
12-15-18-22-28mm |
1.2309 |
15-22mm |
1.2309 |
1/2-5/8
3/4 7/8" |
1.2309 |
1/2-5/8
7/8 1.1/8" |
1.2309 |
| 1/2-3/4
1" |
1.2335 |
|
|
| 标准铆接扩管气头 |
 |
| |
管壁厚 |
|
|
直径 mm/inch
|
铜 |
铝 |
铁 |
A mm |
货号 |
8 |
1.0 |
1.0 |
1.0 |
9.0 |
1.1008 |
10 |
1.0 |
1.0 |
1.0 |
10.0 |
1.1010 |
12 |
1.2 |
1.2 |
1.2 |
12.6 |
1.1012 |
14 |
1.2 |
1.2 |
1.2 |
12.6 |
1.1014 |
15 |
1.2 |
1.2 |
1.2 |
15.5 |
1.1015 |
16 |
1.2 |
1.2 |
1.2 |
15.5 |
1.1016 |
18 |
1.2 |
1.2 |
1.2 |
17.5 |
1.1018 |
20 |
1.2 |
1.2 |
1.2 |
17.5 |
1.1020 |
22 |
1.2 |
1.5 |
1.5 |
20.5 |
1.1022 |
28 |
1.5 |
1.5 |
1.5 |
18.5 |
1.1028 |
35 |
1.6 |
- |
- |
19.5 |
1.1035 |
38 |
1.6 |
- |
- |
19.5 |
1.1038 |
42 |
1.5 |
- |
- |
19.5 |
1.1042 |
| |
管壁厚 |
|
|
直径 mm/inch |
铜 |
铝 |
铁 |
A mm |
货号 |
5/16" |
1.0 |
1.0 |
1.0 |
6.0 |
1.1008 |
3/8" |
1.0 |
1.0 |
1.0 |
7.4 |
1.1052 |
1/2" |
1.2 |
1.2 |
1.2 |
11.0 |
1.1053 |
5/8" |
1.2 |
1.2 |
1.2 |
14.0 |
1.1054 |
3/4" |
1.2 |
1.2 |
1.2 |
18.1 |
1.1055 |
7/8" |
1.2 |
1.2 |
1.2 |
18.0 |
1.1056 |
1" |
1.5 |
1.5 |
1.5 |
15.8 |
1.1057 |
1.1/8" |
1.6 |
1.6 |
1.6 |
17.0 |
1.1058 |
1.1/4" |
1.6 |
- |
- |
17.0 |
1.1058 |
1.3/8" |
1.6 |
- |
- |
17.0 |
1.1058 |
1.1/2" |
1.6 |
- |
- |
17.0 |
1.1058 |
1.5/8" |
1.6 |
- |
- |
17.5 |
1.1062 |
1.3/4" |
1.6 |
- |
- |
17.5 |
1.1063 |
|
|
|
| |
|
|
