| SI-1107B 1/4''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1107B |
| 接头尺寸 in./(mm) |
|
1/4/(6.35) |
| 扭矩 Nm/(ft-lb) |
|
30/(22) |
| 工作扭矩 Nm/(ft-lb) |
|
0-25/(0-18) |
| 螺帽 mm/(in.) |
|
6.35/(1/4) |
| 空转转速 rpm |
|
300 |
| 重量 kg/(lb) |
|
0.39/(0.86) |
| 噪声级 dBA/(power) |
|
78/(91) |
| 振动加速度 m/s平方 |
|
<2.5 |
| 空气平均用量 CFM |
|
1.8 |
| 进气口尺寸 in. |
|
1/8 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| SI-1200B 1/4''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1200B |
| 接头尺寸 in./(mm) |
|
1/4/(6.35) |
| 扭矩 Nm/(ft-lb) |
|
35/(26) |
| 工作扭矩 Nm/(ft-lb) |
|
0-30/(0-22) |
| 螺帽 mm/(in.) |
|
6.35/(1/4) |
| 空转转速 rpm |
|
200 |
| 重量 kg/(lb) |
|
0.51/(1.11) |
| 噪声级 dBA/(power) |
|
85/(97) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
1.6 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

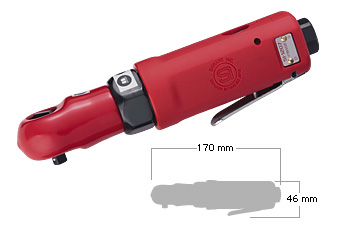

| SI-1207 1/4''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1207 |
| 接头尺寸 in./(mm) |
|
1/4/(6.35) |
| 扭矩 Nm/(ft-lb) |
|
38/(28) |
| 工作扭矩 Nm/(ft-lb) |
|
0-30/(0-22) |
| 螺帽 mm/(in.) |
|
6.35/(1/4) |
| 空转转速 rpm |
|
200 |
| 重量 kg/(lb) |
|
0.54/(1.18) |
| 噪声级 dBA/(power) |
|
85/(97) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
1.6 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

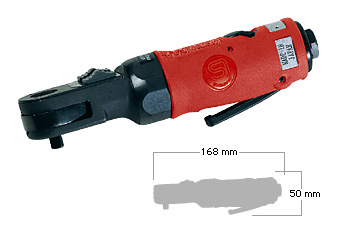

| SI-1251 1/4''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1251 |
| 接头尺寸 in./(mm) |
|
1/4/(6.35) |
| 扭矩 Nm/(ft-lb) |
|
45/(33) |
| 工作扭矩 Nm/(ft-lb) |
|
0-33/(0-24) |
| 螺帽 mm/(in.) |
|
6.35/(1/4) |
| 空转转速 rpm |
|
200 |
| 重量 kg/(lb) |
|
0.56/(1.24) |
| 软管尺寸 mm/(in.) |
|
168/(6.61) |
| 噪声级 dBA/(power) |
|
79/(92) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
2.4 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| |
| |
| |
