| SI-1108B 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1108B |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
30/(22) |
| 工作扭矩 Nm/(ft-lb) |
|
0-25/(0-18) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
300 |
| 重量 kg/(lb) |
|
0.40/(0.88) |
| 噪声级 dBA/(power) |
|
78/(91) |
| 振动加速度 m/s平方 |
|
<2.5 |
| 空气平均用量 CFM |
|
1.8 |
| 进气口尺寸 in. |
|
1/8 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| SI-1205B 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1205B |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
40/(30) |
| 工作扭矩 Nm/(ft-lb) |
|
0-30/(0-22) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
220 |
| 重量 kg/(lb) |
|
0.51/(1.12) |
| 噪声级 dBA/(power) |
|
86/(98) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
1.6 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

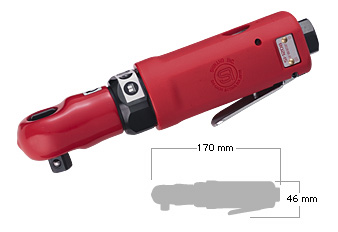

| SI-1208 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1208 |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
40/(30) |
| 工作扭矩 Nm/(ft-lb) |
|
0-30/(0-22) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
200 |
| 重量 kg/(lb) |
|
0.54/(1.20) |
| 噪声级 dBA/(power) |
|
86/(99) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
2.2 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

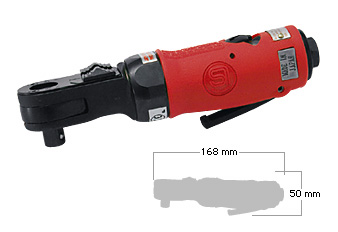

| SI-1252 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1252 |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
47/(35) |
| 工作扭矩 Nm/(ft-lb) |
|
0-35/(0-26) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
260 |
| 重量 kg/(lb) |
|
0.56/(1.24) |
| 噪声级 dBA/(power) |
|
79/(92) |
| 振动加速度 m/s平方 |
|
3.5 |
| 空气平均用量 CFM |
|
2.4 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| |
| |
| |
