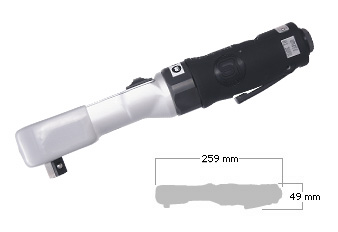

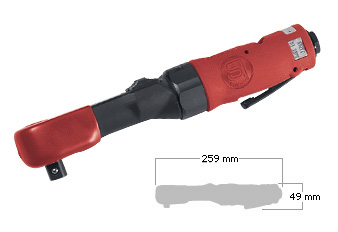

| SI-1261/1261S 3/8''气动棘轮扳手 |
|
|
| 型号 |
|
SI-1261/SI-1261S |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
110/(81) |
| 工作扭矩 Nm/(ft-lb) |
|
0-65/(0-48) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
170 |
| 重量 kg/(lb) |
|
1.20/(2.65)/0.96/(2.12) |
| 噪声级 dBA/(power) |
|
84/(97) |
| 振动加速度 m/s平方 |
|
7.0 |
| 空气平均用量 CFM |
|
3.0 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

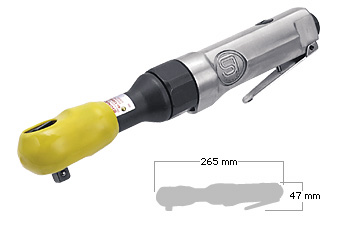

| SI-1320A 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1320A |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
80/(59) |
| 工作扭矩 Nm/(ft-lb) |
|
0-60/(0-44) |
| 螺帽 mm/(in.) |
|
12/(1/2) |
| 空转转速 rpm |
|
160 |
| 重量 kg/(lb) |
|
1.16/(2.57) |
| 噪声级 dBA/(power) |
|
93/(105) |
| 振动加速度 m/s平方 |
|
7.6 |
| 空气平均用量 CFM |
|
2.7 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| SI-1340B 3/8''气动棘轮扳手 |
 |
|
| 型号 |
|
SI-1340B |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
110/(81) |
| 工作扭矩 Nm/(ft-lb) |
|
0-85/(0-63) |
| 螺帽 mm/(in.) |
|
12/(1/2) |
| 空转转速 rpm |
|
160 |
| 重量 kg/(lb) |
|
1.14/(2.50) |
| 噪声级 dBA/(power) |
|
89/(102) |
| 振动加速度 m/s平方 |
|
7.6 |
| 空气平均用量 CFM |
|
2.5 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|

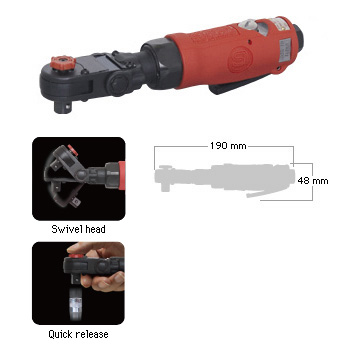

| SI-1241A 3/8''气动棘轮扳手 new |
 |
|
| 型号 |
|
SI-1241A |
| 接头尺寸 in./(mm) |
|
3/8/(9.5) |
| 扭矩 Nm/(ft-lb) |
|
30/(22.1) |
| 工作扭矩 Nm/(ft-lb) |
|
0-25/(0-18.4) |
| 螺帽 mm/(in.) |
|
10/(3/8) |
| 空转转速 rpm |
|
250 |
| 重量 kg/(lb) |
|
0.63/(1.38) |
| 噪声级 dBA/(power) |
|
89/(101) |
| 振动加速度 m/s平方 |
|
7.6 |
| 空气平均用量 CFM |
|
1.9 |
| 进气口尺寸 in. |
|
1/4 |
| 软管尺寸 mm/(in.) |
|
10/(3/8) |
|
|
|
| |
| |
| |
